Beer barrel 20 l – 50 l

Product information "Beer barrel 20 l – 50 l"

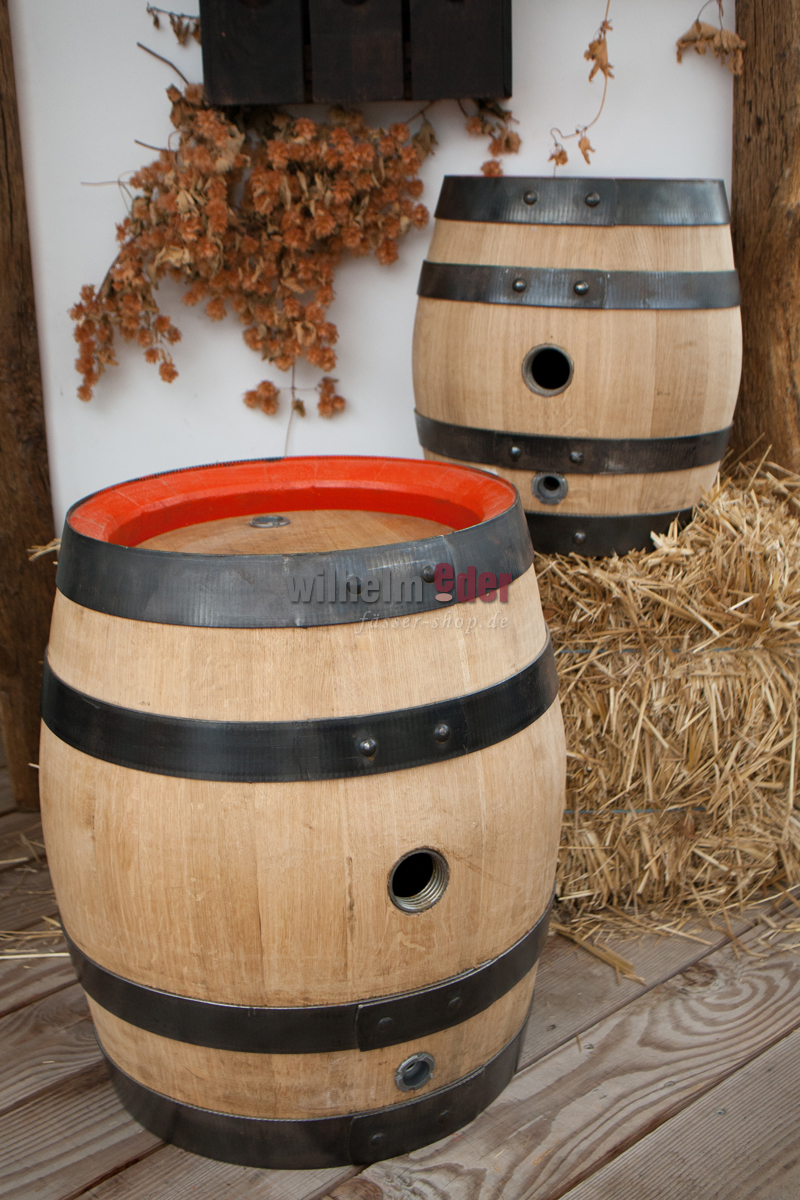

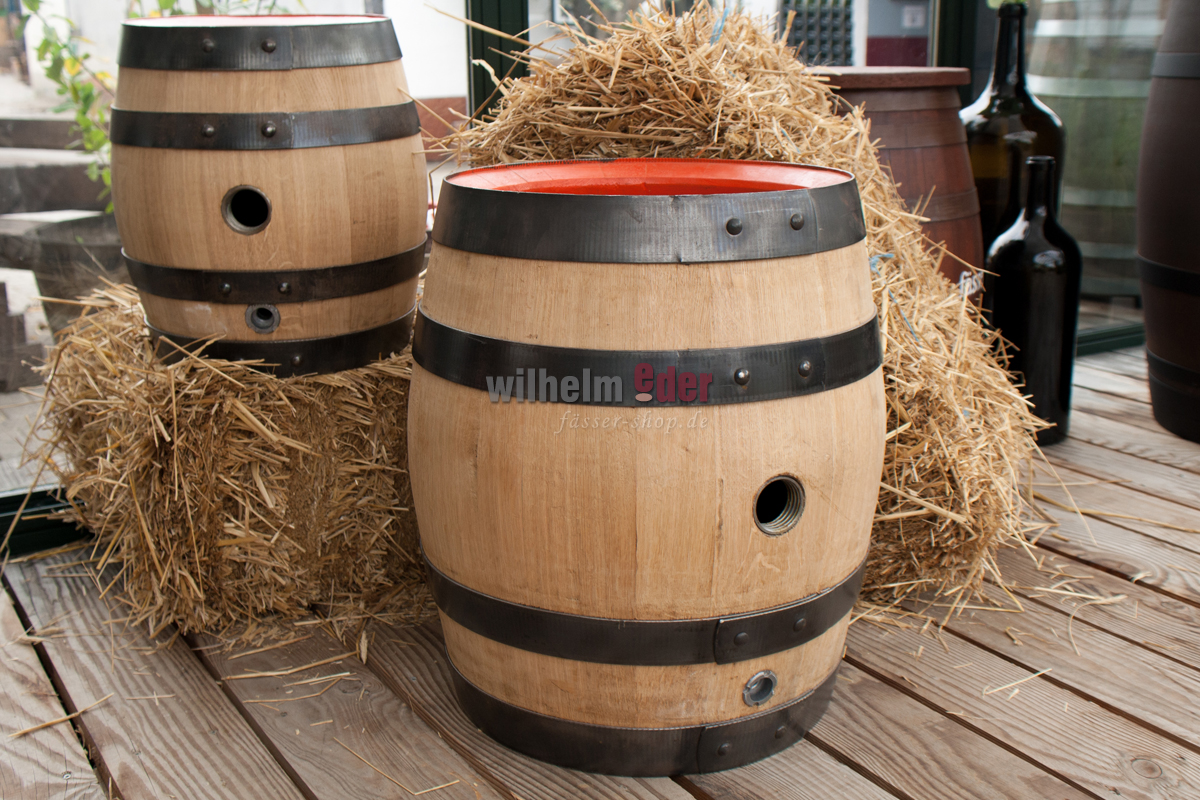

The beer barrels are made of dried Oak wood and the end of the staves are red painted. The outside of the barrel has been left pure, whereas the inside has been treated with pitch.


Dimensions ca.:

Volume

Length cm

Belly Ø cm

Head Ø cm

20 l

42

38

32,5

50 l

57

50

42,5











Commissioning of a beer barrel:

The external watering of a beer barrel is very important for the pressure tightness. It is enough to sprinkle the barrel. This process should last for a week (with interruptions). Internal rinsing is not necessary as the barrels are lined.

Most brewers fill their barrels with 1.5 - maximum 2 bar. This is only a recommendation; we do not give exact information on how much pressure a single barrel can withstand, as many factors have to be taken into account.

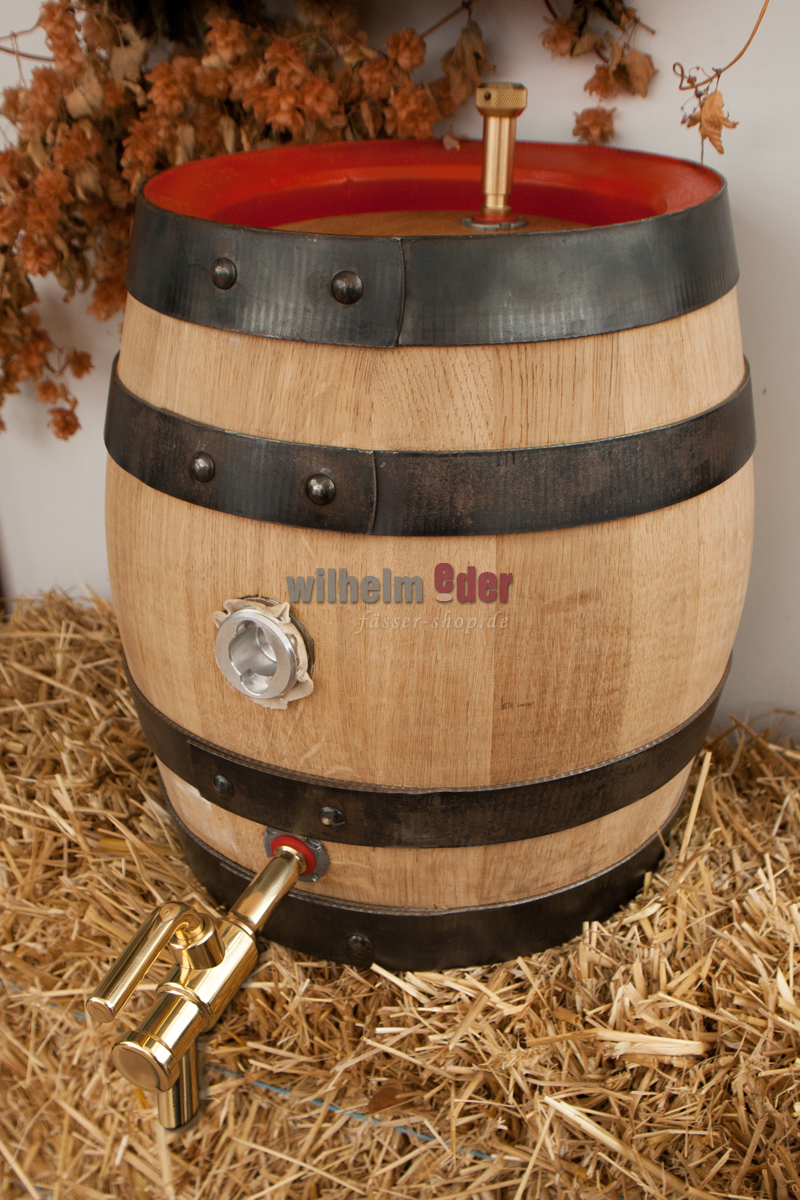

How to tap:

To tap the cask you need a hammer, the valve, a beer tap made of brass.

The barrel should stand on a table.
Before taping the barrel, the equipment should be dropped in cold water, which acts like a lubricant. Please make sure that at the beginning the valve is closed.

The tap must be driven into the siphon box at the side under the bung. It is unavoidable that beer spouts out (depending on the practice). For the perfect tapping you need two very powerful strikes. Inexperienced persons should strike more than two times.

You should hold the tap while turning up and put a glass underneath. As soon as no beer runs out, put the valve on top of the drumhead. The valve regulates the flow of the beer-strongly turned on means more and inversely means less.

If it doesn´t work - do not remove the tap!
Try to press the tap deeper into the barrel. If the beer shoots out from the air valve and the tapping has worked, it means that the barrel was not cooled, and pressure has been too high.

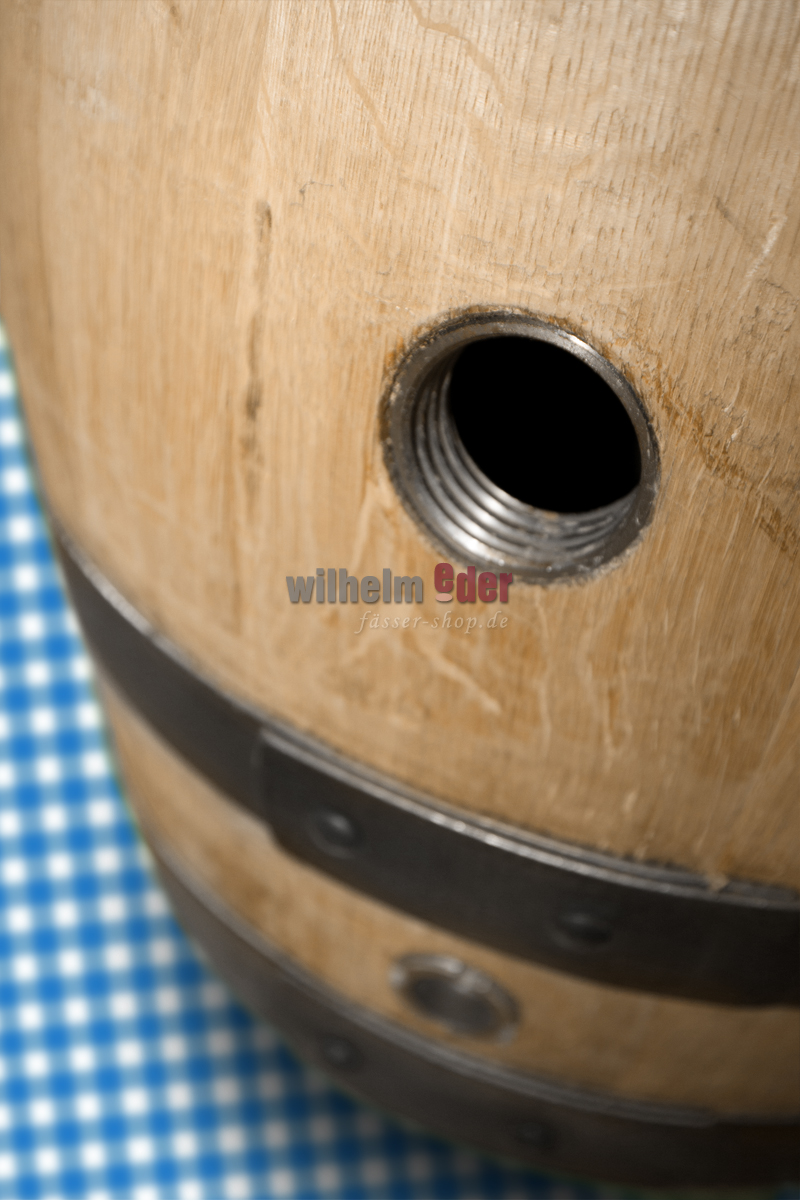

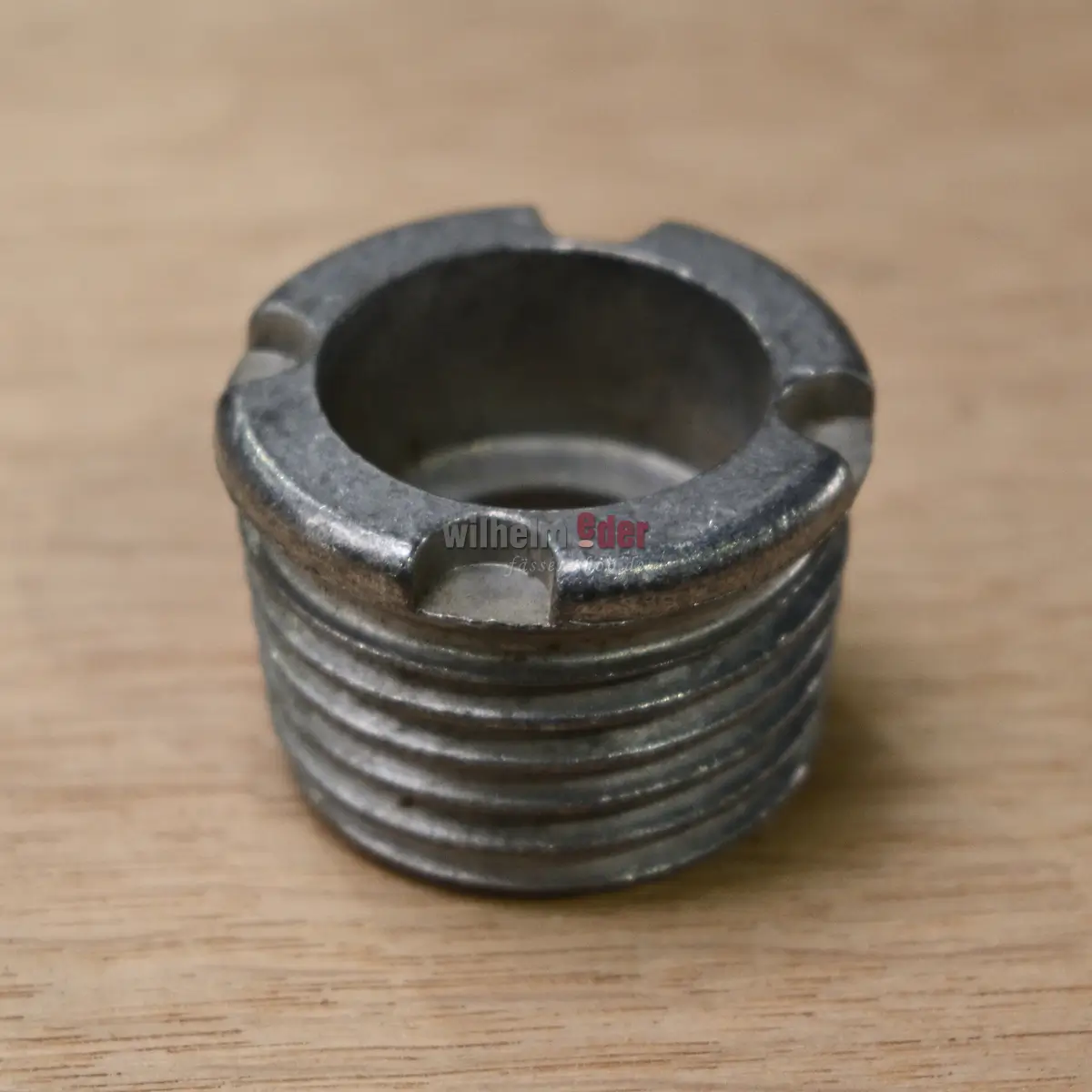

Including bung ring of 43 mm and 2 siphon box.

The price includes only the barrel. Equipment like, bung screw, tap and valve, plastic cork, beer hammer, Bung lobes see below article.

Characteristics from "Beer barrel 20 l – 50 l"
Liter: 20 l, 50 l
Recommended for:: Beer
Wood species: Oak

Accessories for beer barrels

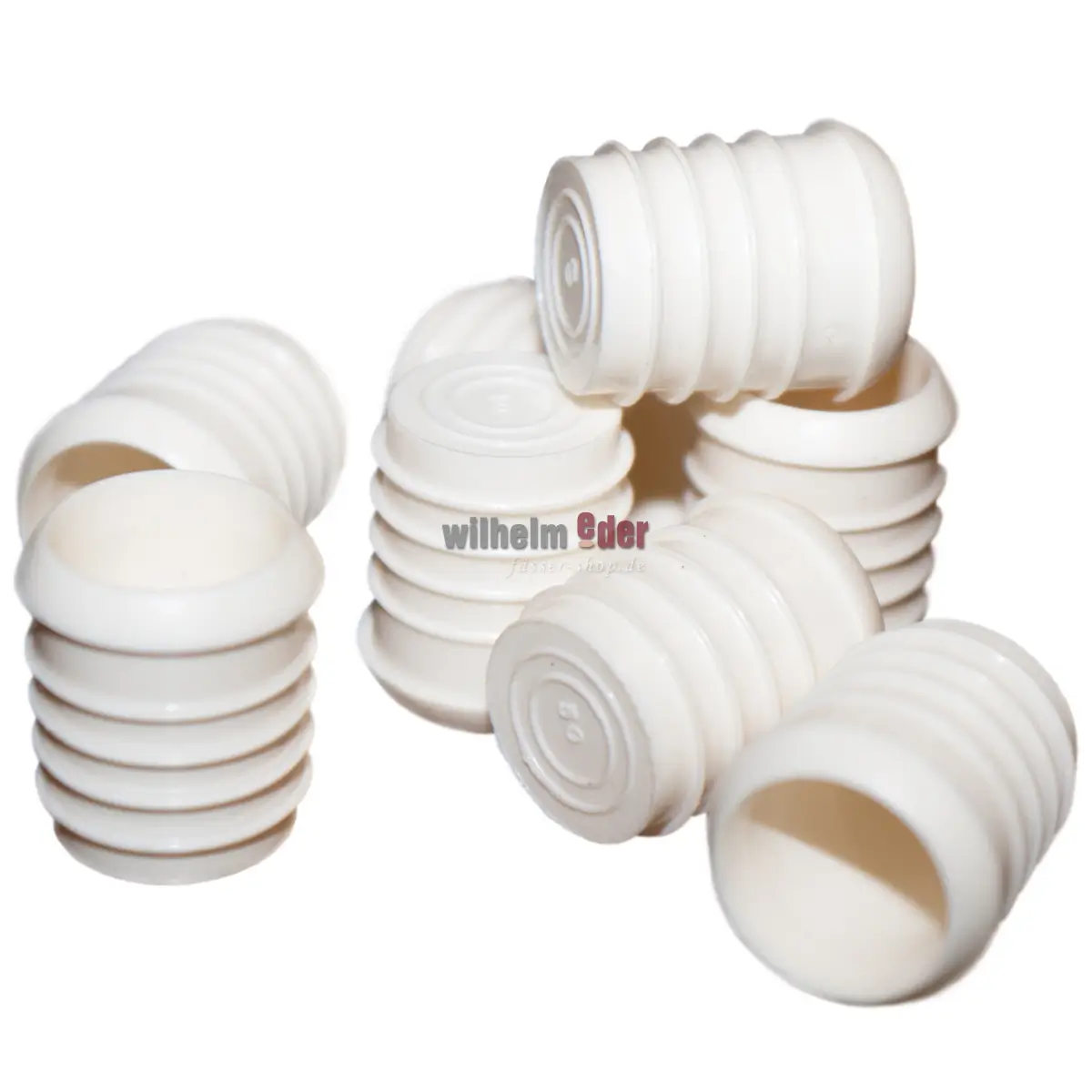

Plastic corks for beer barrel
The plastics corks are for closing the siphon box, where later the tap and the valve are driven. 1 Pack includes 10 pieces.

€6.82*
net: €5.73
Bung lobes for beer barrel
The bung lobes should be used with the bung screw. That’s the only way to completely seal the barrel after filling in.

€7.71*
net: €6.48
Bung screw for beer barrel - PVC coating
The bung screw is for the larger howl, threaded in the middle of the belly of the barrel.The screw is equipped with a square socket and a green plastic coating. It seals without an additional bung. Dimension ca.:ø Max.: 4,8 cmLength: 3,5 cm

€18.74*
net: €15.75

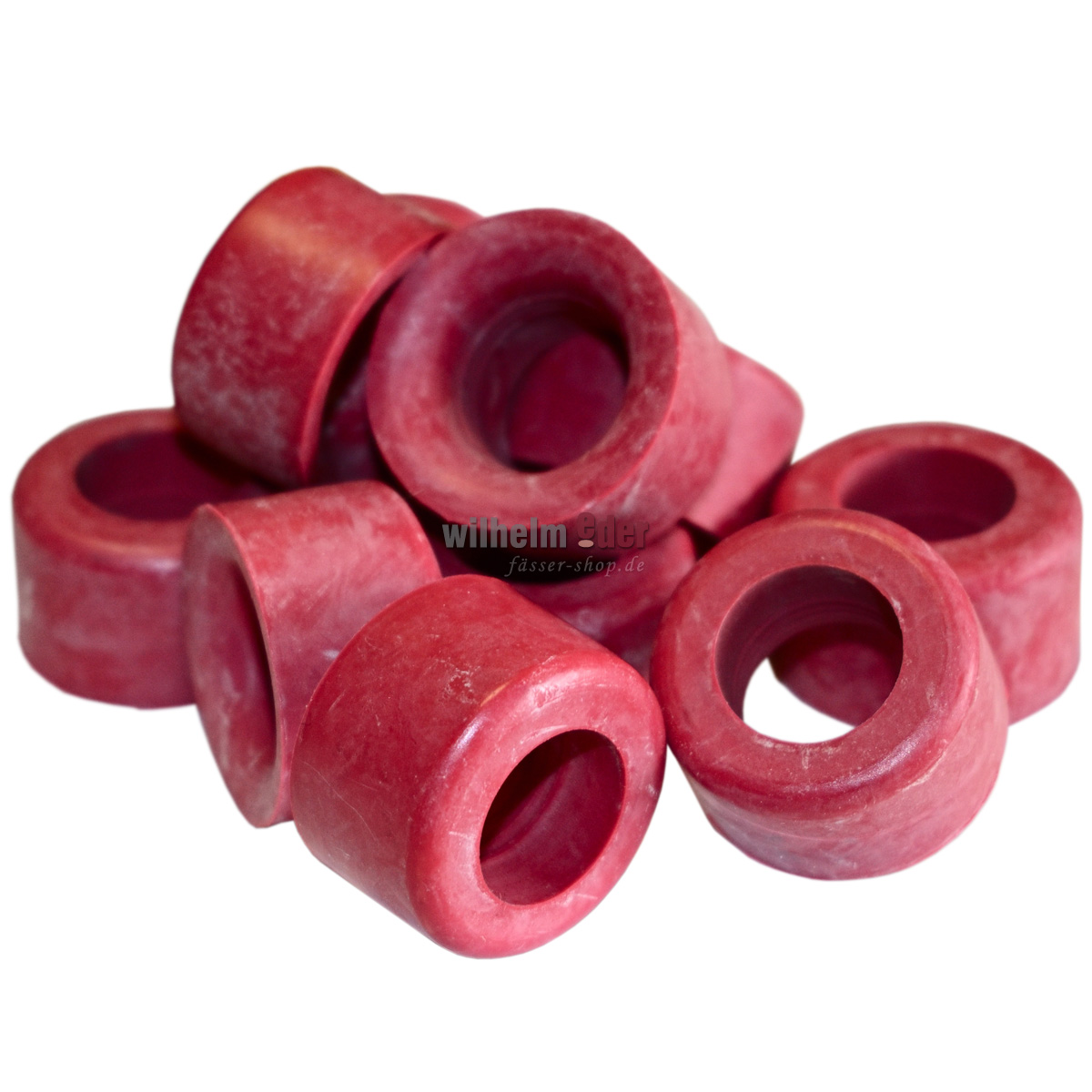

Gaskets for beer tap
Tapping rubber red10 pieces in a set

€19.04*
net: €16.00

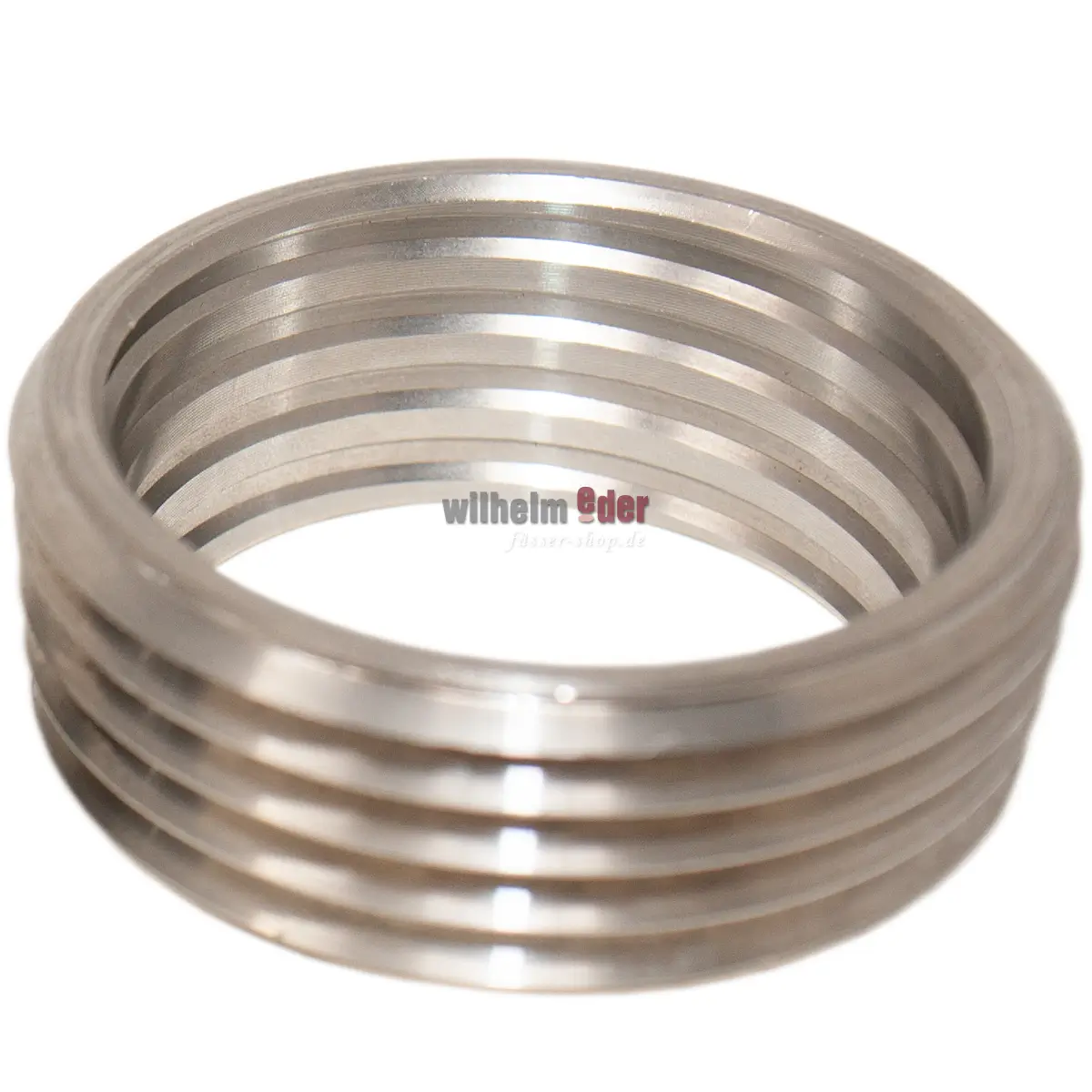

Bung hole ring - stainless steel
Bung hole ring - stainless steel for screwing into the bunghole. Made of high-quality stainless steel from V4A, to be screwed into the bunghole of the barrel. The barrel can then be closed pressure-safe by the corresponding counter screw.

€30.23*
net: €25.40

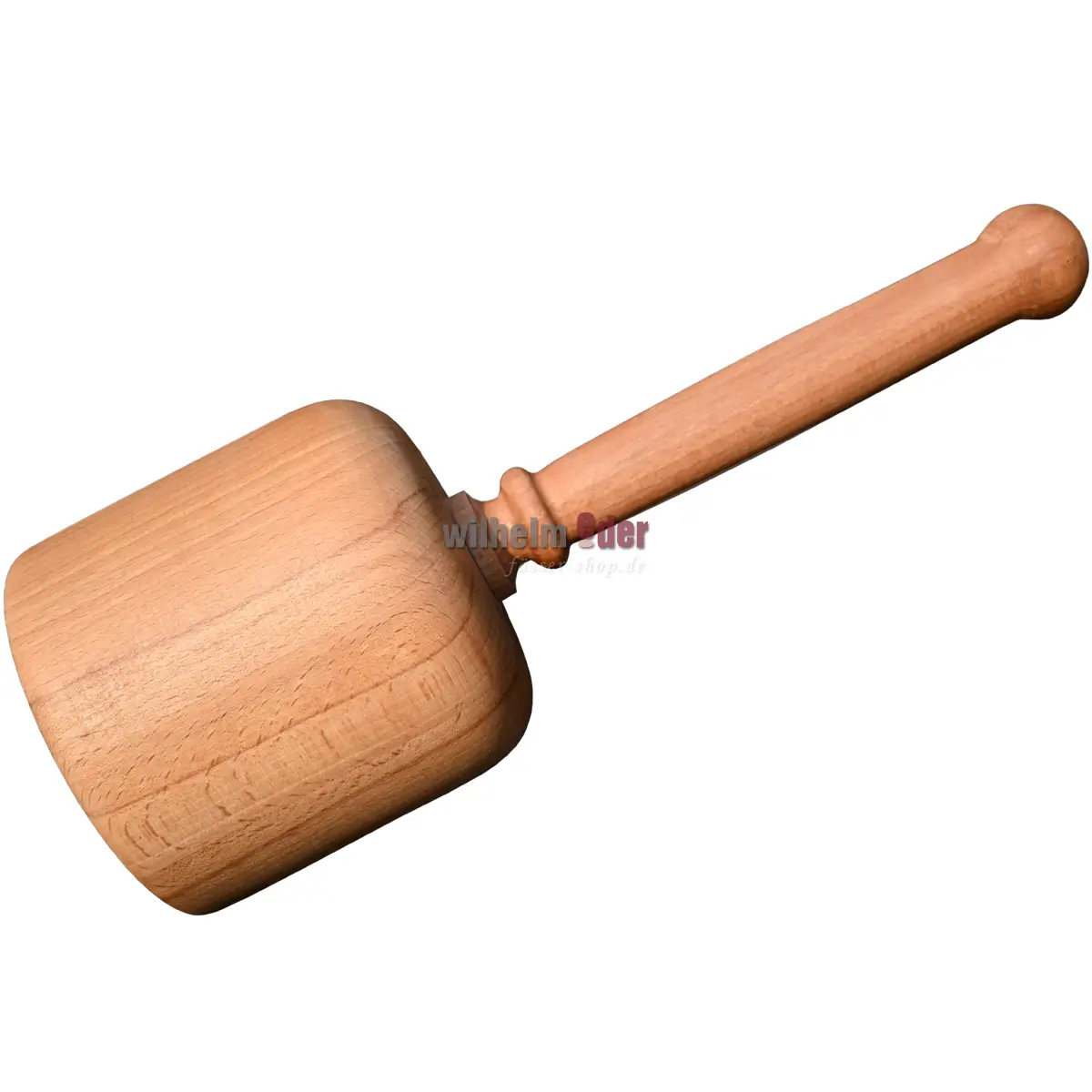

Beer hammer- Wood
A mallet for driving the brass valve into a beer barrel. It is made of beech and was glued several times and is colorless varnished.

€50.12*
net: €42.12
Variants available

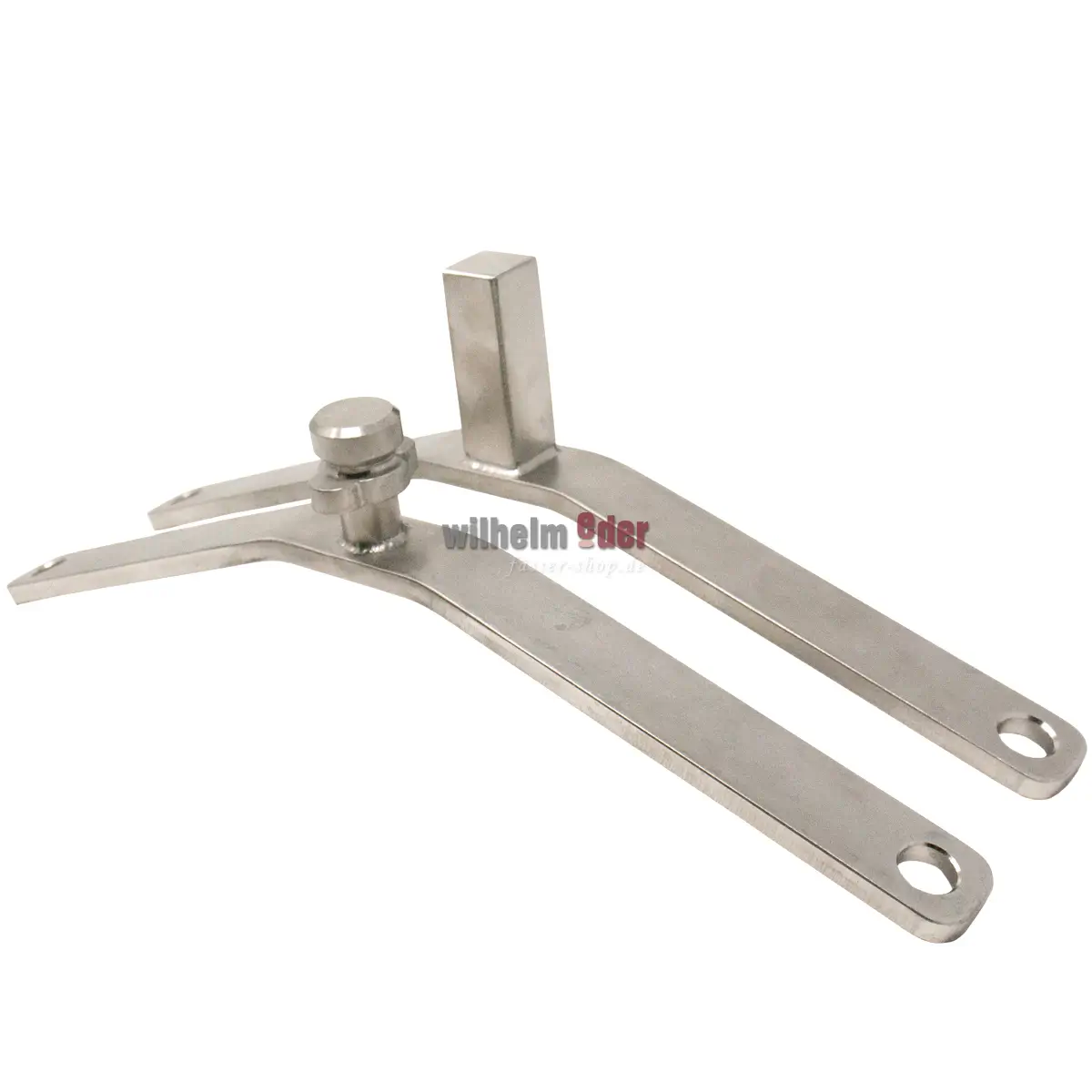

Stainless steel bung wrench
Typ: Square
With this bow-shaped bung wrench it is easy to close and open the bung screw. The key is made of stainless steel and convinces with its high stability. Two different versions:- Square -sheet pile key made of stainless steel (22.5x22.5 mm)- Syphon - Stainless steel bung wrench ("form of a heart")

€163.98*
net: €137.80

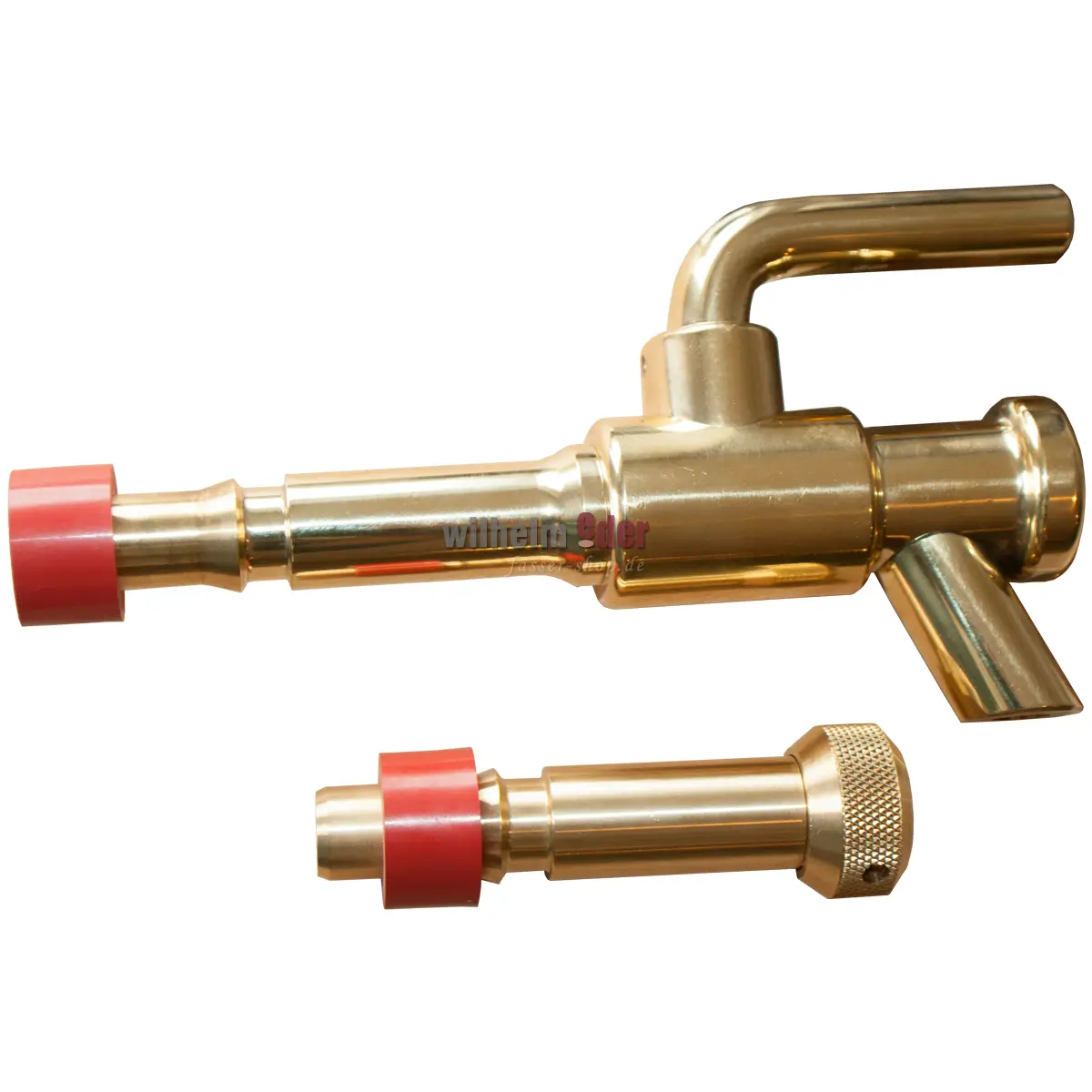

Tap and valve for beer barrel- Brass
Tap and air valve made of brass with cylinder seal for beer barrels with siphon box.

€200.28*
net: €168.30
