EDER - FassStolz® 2600 l oval - German Oak

Product information "EDER - FassStolz® 2600 l oval - German Oak"

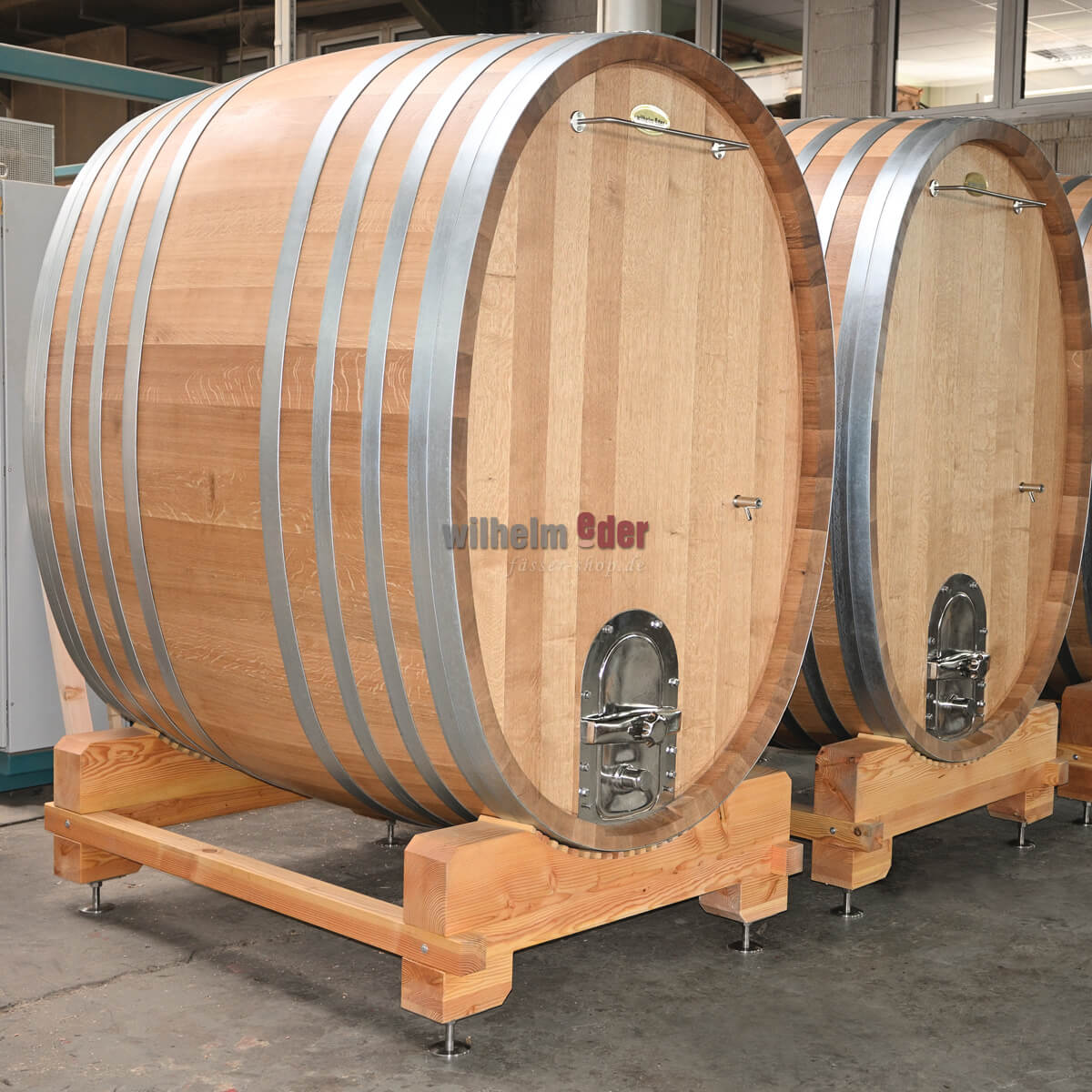

Oval wooden storage casks with a capacity of 2600 l

Made from seasoned oak wood, origin Palatinate Forest / Northern Vosges!
Fine-grained on red sandstone grown about 200 years, sustainably logged according to certification Naturland or PEFC.
Growing area: Palatinate Forest
Hot-dip galvanised hoops
Toasting: according to customer requirements

All casks are equipped with a bottom middle piece for possible door installation and a central stave in the belly area for possible installation of residual drains. Before delivery each barrel is checked for tightness.

Fluctuations in capacity and dimensions are possible, the final calculation of the barrel is made after delivery by a water meter.

The barrels are equipped with hot-dip galvanised tyres and a wooden door as standard. They are treated with linseed oil or a clear, food-certified and breathable varnish (please specify under "comments" when ordering).

Please note: the photos of the articles show special equipment, which is subject to surcharge


Option stainless steel hoops:
width: 60 mm and 70 mm
Surcharge per cask or barrel and on request.

Delivery and assembly costs are calculated individually. Delivery time by arrangement.

Suitable accessories can be found below. Not found the right barrel size? Ask without obligation for a personal offer.

Dimensions in mm spprox.:
Stave thickness: 55/65 mm
Stave lenght: 1750 mm
Height (belly): 1950 mm
Axis (belly): 1410 mm

Characteristics from "EDER - FassStolz® 2600 l oval - German Oak"
Form: Oval
Liter: 2600 l
Recommended for:: Wine
Wood species: German Oak
