Gasket for stainless door

Product information "Gasket for stainless door"

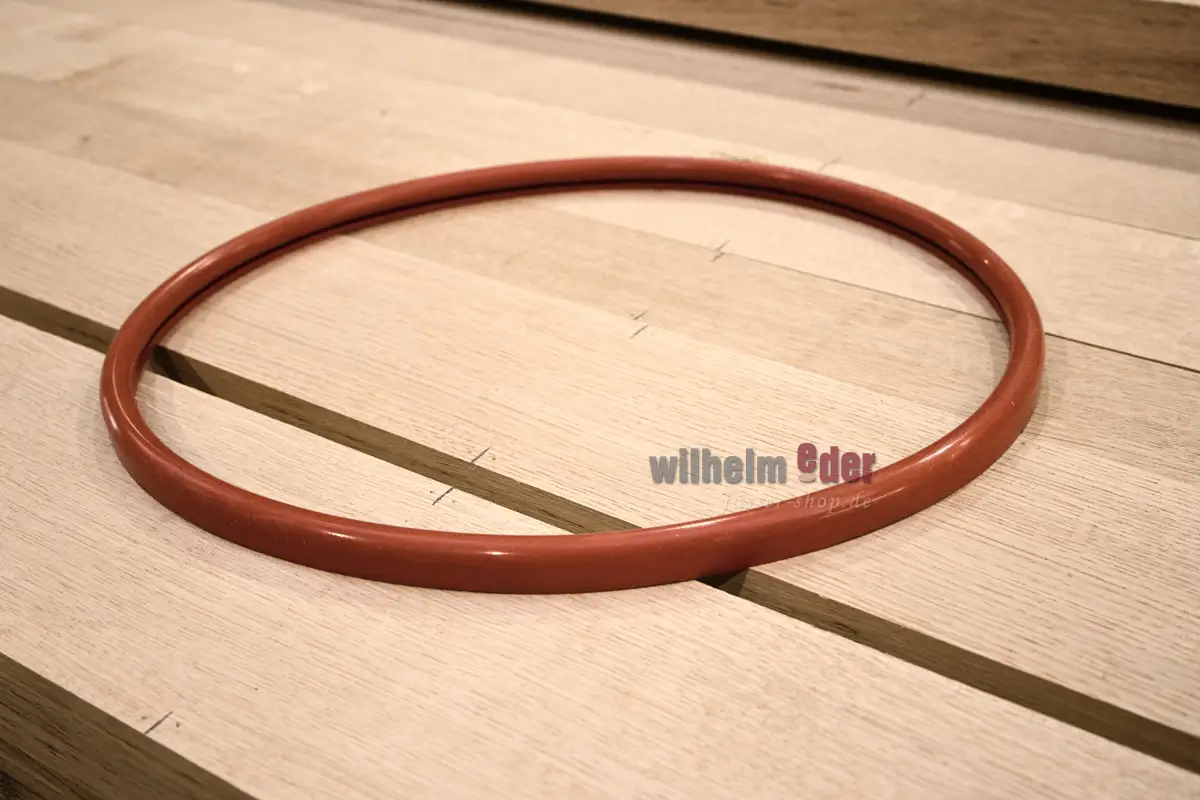

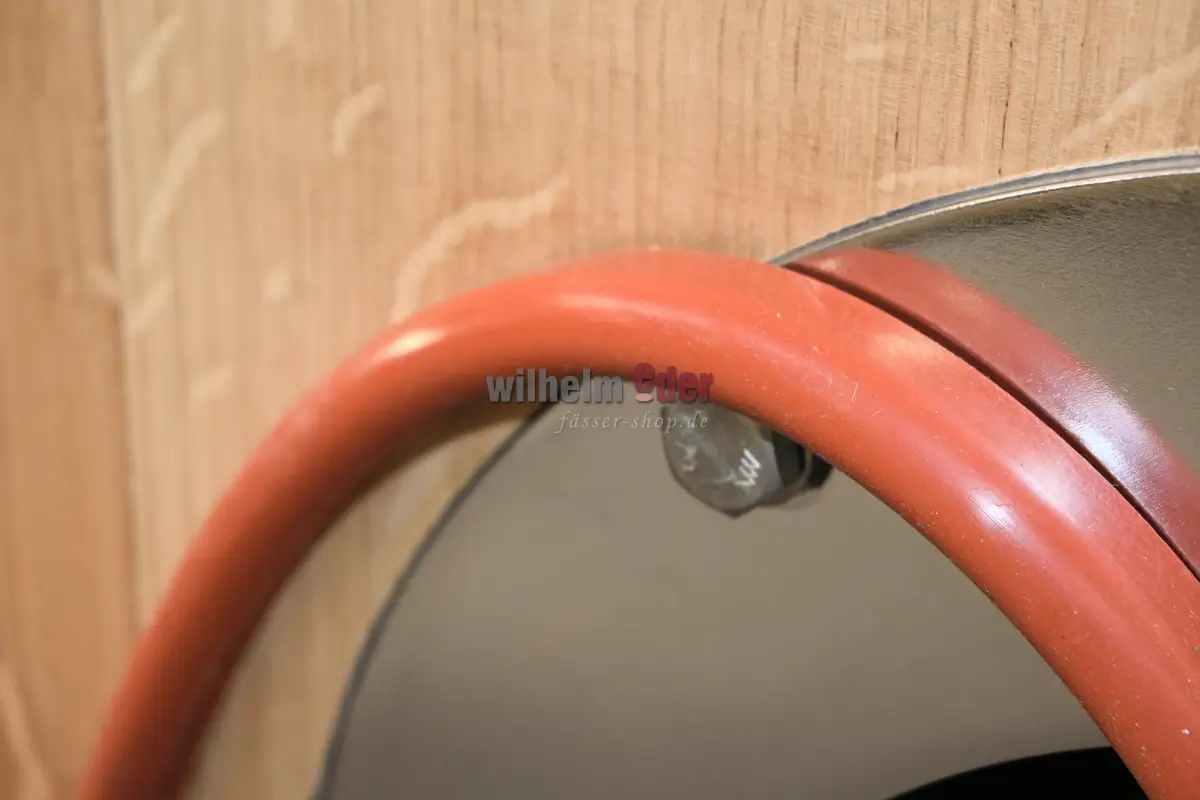

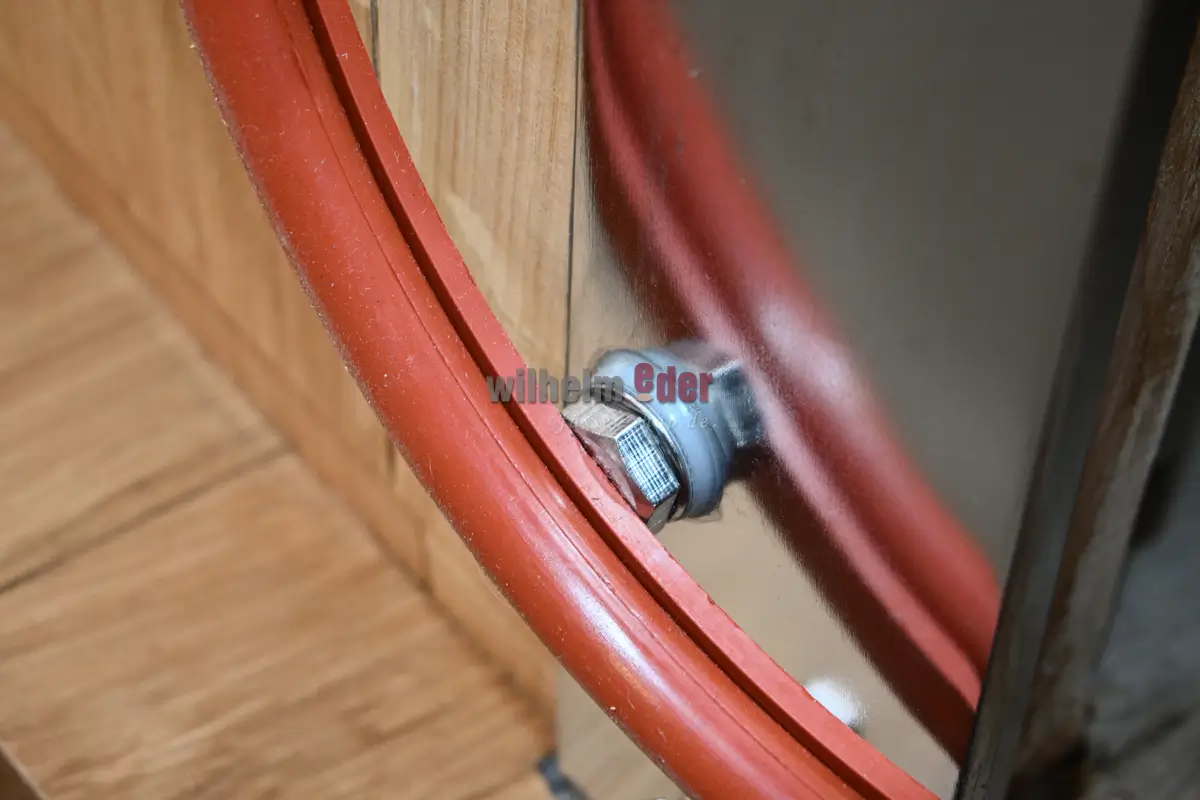

Replacement gasket for manhole door made of stainless steel.

Typ 1: Gasket 4x14; 1260 mm  - for stainles steel doors size I NR/CR 45 light
Typ 2: Gasket 320 x 420 - for stainles steel doors size II NR/CR 45 light

Specification:
Density: 1,25 gr/cm³
Hardness ISO 7619-1: 45 +/- 5 ShoreA
Tensile strength DIN 53504: 5,2 N/mm²
Elongation at break DIN 53504: 450%
Rebound resilienee DIN 5351 2:38%
Compression set DIN 53517 (Specimen A,24h /70'C): 25 %

Remark:
The contents of the compound comply in quality and quantity with:
- the F DA- Reg ul ations$ 1 77. 2600
- the BfR-recommendation W Kat. 1-3
- fhe RoHS-Guideline
- the REACH-Regulation





Associated article

Stainless steel door for installation in round and oval vats
The doors are made of stainless steel (V4A) and open to the inside. All visible surfaces are polished and sanded, also the surface which has contact with the liquid. On demand the door can be equipped with a hole for a bunghole flaper with a screw plug for taps.Prices exclusive installation. The installation of the stainless steel doors at new vats can be chosen separately at Accessories. The installation at old vats will be charged according to efforts by our coopers. If you have any questions, please feel free to write us an email.

€863.94*
net: €726.00
